touch steam sterilizer

class B Touch Screen Steam Sterilizer

  • class B Touch Screen Steam Sterilizer
class B Touch Screen Steam Sterilizer


With a large touch screen control for 8 programs and 2 tests and an interior vacuum pump, this autoclave will sterilize a wide array of items, especially those that are porous. 3 trays and 2 chamber capacities of 17 and 23 liters respectively are available for the T&S-B series autoclave.



Technical Specifications
ModelT&S17BT&S23B
Chamber Dimensions(mm) (ΦxD)250x350250x490
Chamber Capacity(Liter)1723
Overall Size(mm) (LxWxH)560x480x420670x480x420
Heater1800W2200W
Net Weight(KGS)4148
Gross Weight(KGS)4855
Packing Size(mm)700x580x490810x580x490
Minimum Desk Size(mm)480x400480x500
Power Supply230V, 50/60Hz230V, 50/60Hz
Sterilization Temperature121/134℃121/134℃
Sterilize TimeRefer to cyclesRefer to cycles
Dry ProcedureVacuum dryingVacuum drying
Stainless Steel Instrument Trays3 trays3 trays


Features
  • Large touch screen control for 8 programs and 2 tests

  • The vacuum pump ensures air is efficiently discharged from the chamber with a negative pressure of up to -0.90 bars.

  • This steam sterilizer has a built-in steam generator to ensure a better sterilization effect.

  • The automatic safety door lock system prevents the door from opening under high pressure.

  • The sterilization chamber is made of a polished stainless steel, ensuring a higher quality and durability.

  • The cycle data can be transferred either to your PC via USB or to the printer for direct printing. The steam sterilizer also features real time monitoring.




Sterilization level

Class B

special sterilization

HIV,HBV, Mad Cow Virus   and Bacillus

Display

Touch screen

control accuracy

Temperature 0.1 , pressure 0.001bar

Safety

Safety valve, automatic door lock, fault self-check, over temperature   and over pressure protection

sterilizer configuration

5 layer movable frame with 3 trays

Noise

<50db

sterilization temperature

121,134

drying program

Powerful vacuum drying

test system

BD test ,vacuum test, Helix Test

sterilization data

USD and printer

water supply system

Built-in 4L clean water tank

Chamber

Medical special stainless steel 304, the maximum working pressure is   2.3bar, the minimum working pressure is -0.8bar, and the maximum working   temperature is 136

sterilization water consumption

0.15-0.18L

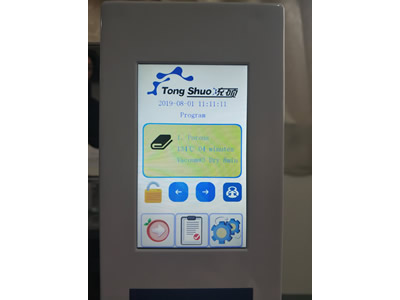

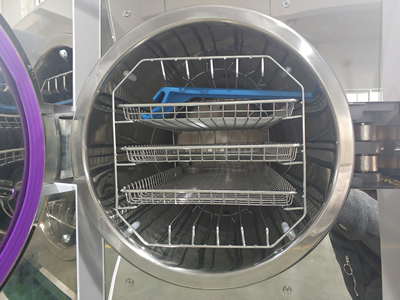

  •  large touch screen         stainless  steel chamber

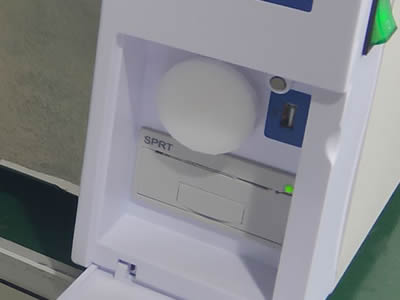

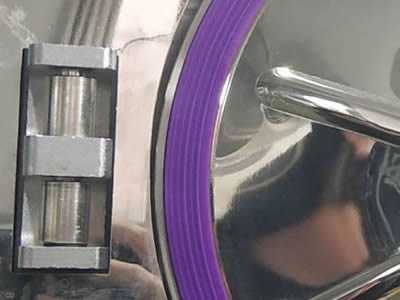

 safety locking system      data transfer
