round shape steam sterilizer

class N autoclave 14L.17L23L

  • class N autoclave 14L.17L23L
class N autoclave 14L.17L23L

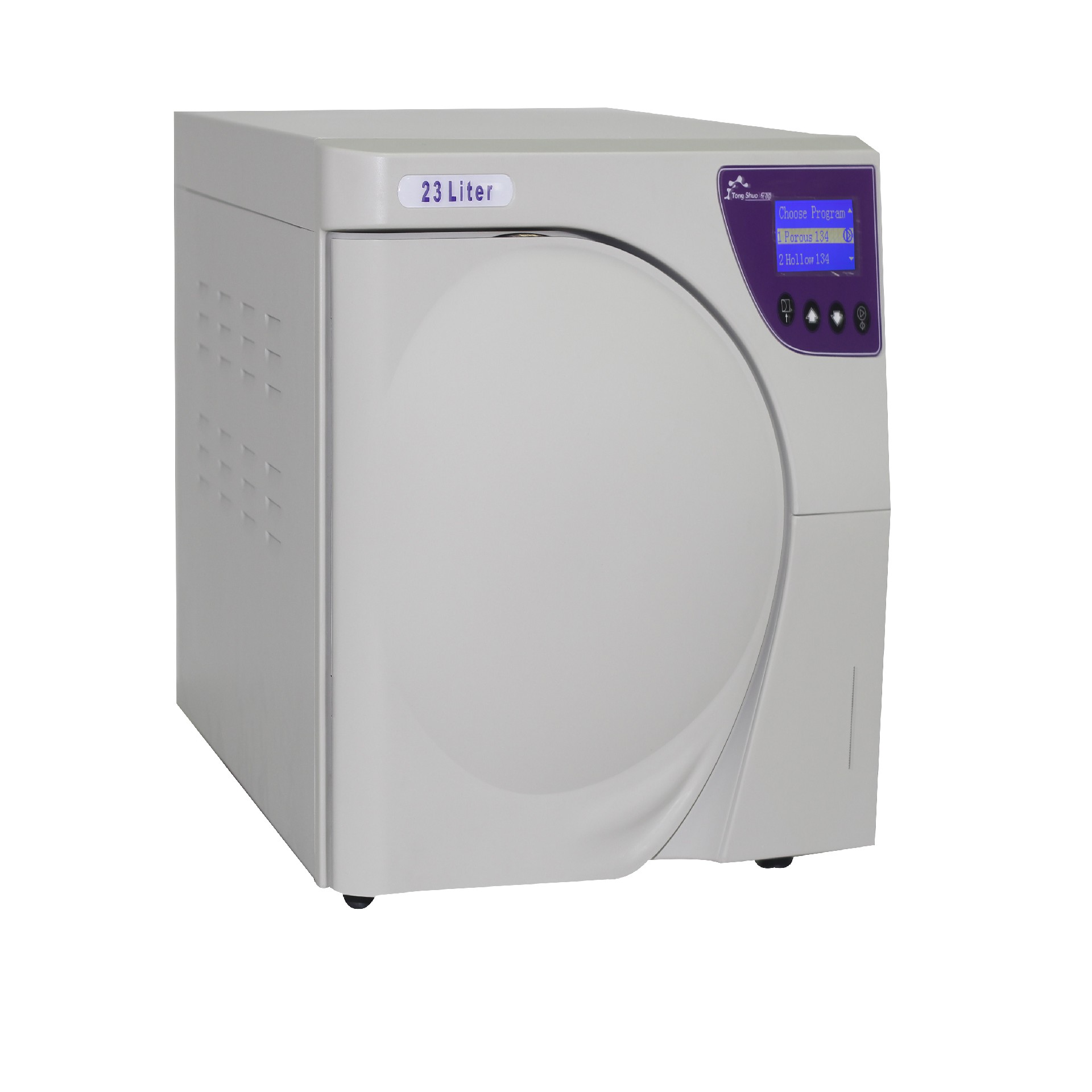

Series N Autoclave Steam Sterilizer for Tabletop

With a built-in steam generator and connection to an external water supply for running sterilization cycles,

this tabletop autoclave includes 2 trays and 3 chamber capacities at 14, 17, and 23 liters respectively.






Features

  • This steam sterilizer has a built-in steam generator to ensure a better sterilization effect.

  • A clear LCD screen displays the temperature, pressure, working time and other operating states for different stages, including filling, sterilization, exhausting, and drying.

  • An automatic safety door lock system prevents the door from opening under high pressure.

  • The sterilization chamber is made of a polished stainless steel for a high quality and longer durability.

  • This autoclave steam sterilizer supports automatic operations. It has two programs.

  • The data can be transferred either to the computer via USB or to the printer, then printed. The sterilization effect is also monitored in real time.

  • This autoclave steam sterilizer is certified to CE, ISO and TÜV standards.




Technical Specifications

ModelTS 14NTS 17NTS 23N
Chamber Dimensions(φxD)25*28cm25*35cm25*49cm
Chamber Capacity14L17L23L
Dimensions(LxWxH)48*48*43cm48*56*43cm48*69*43cm
Heater1200W1200W1500W
Weight30kg32kg36.5kg
Minimum Desk Size48*35cm48*40cm48*50cm
Power supply230V, 110V, 126V
Sterilize Temperature121/134℃
Sterilize Time4-18 mins
Dry ProcedureVacuum drying
Stainless Steel Instrument Container2 trays

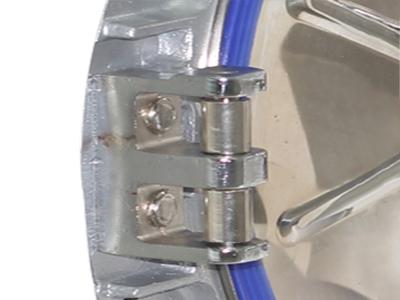

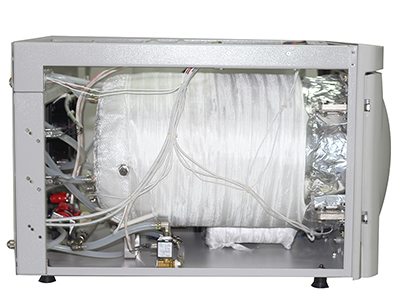

 built-in steam generaor         safety door locker
