sharp shape steam sterilizer

14L/17L/23L class B sharp shape steam sterilizer

  • 14L/17L/23L class B sharp shape steam sterilizer
14L/17L/23L class B sharp shape steam sterilizer



Features:

has automatic door locker system, over temperature and over pressure safety protection,

automatic feeding fresh water and drain waste water.

wide LCD display, shows errors directly in screen ,

it is more convenient for us to communicate with each other when the machine is in problems !


Sterilization level

Class B

special sterilization

HIV,HBV, Mad Cow Virus   and Bacillus

Display

Touch screen

control accuracy

Temperature 0.1 , pressure 0.001bar

Safety

Safety valve, automatic door lock, fault self-check, over temperature   and over pressure protection

sterilizer configuration

5 layer movable frame with 3 trays

Noise

<50db

sterilization temperature

121,134

drying program

Powerful vacuum drying

test system

BD test ,vacuum test, Helix Test

sterilization data

USD and printer

water supply system

Built-in 4L clean water tank

Chamber

Medical special stainless steel 304, the maximum working pressure is   2.3bar, the minimum working pressure is -0.8bar, and the maximum working   temperature is 136

sterilization water consumption

0.15-0.18L



Specifications:

Model                      T& S14B  T& S17BT& S 23B
ChamberDimensions(mm)(Φ × D)  250× 270  250× 380  250× 500
Chamber  Capacity(liter)    14L17L                           23L

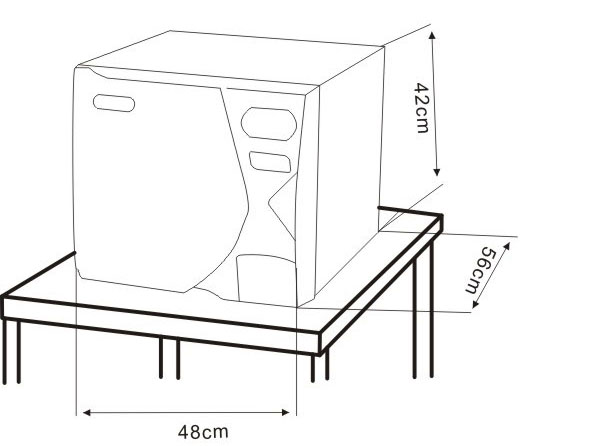

OverallSize(cm)(L× W× H)  48× 48× 5248× 56× 4248× 67× 42
Heater                            1600W    1800W        2000W
Net Weight(KGS)                  37  46.5  56
Gross Weight(KGS)                 45    55              65
Packing Size(cm)    68× 60× 50    73× 60× 50  87× 60× 50
Minimum DeskSize(cm)        48× 35  48× 40    48× 50
Power Supply          220± 10%, 50/60HZ, 10A
Sterilize Temperature   121/134
Sterilize Time                    Please refer to different programs.
Dry Procedure    Vacuum    drying
Sterilizer Construction        Stainless steel       SUS#304
Water tank      internal
Stainless steel instrument  container:        3trays
